Anglia - Technical - Dashboard Layouts
|

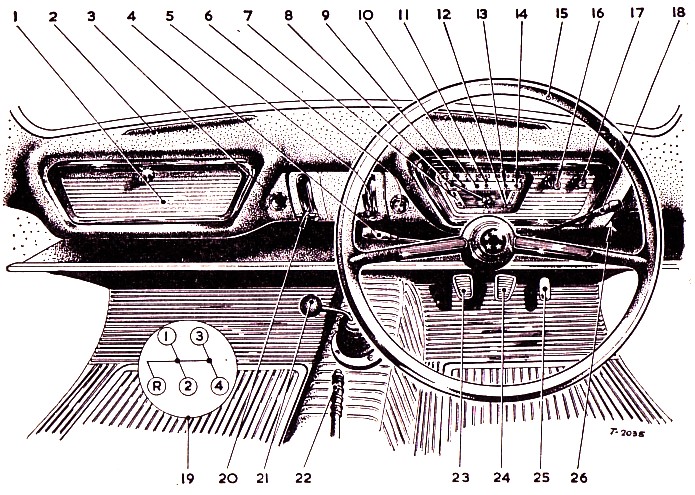

| 1 | Glove Box | 14 | Right-hand Indicator Warning Light (orange) |
| 2 | Demister Slot | 15 | Steering Wheel |
| 3 | Choke Cable | 16 | Ignition Switch and Starter Control |
| 4 | Dip Switch | 17 | Light Switch |
| 5 | Bonnet Lock / Release | 18 | Direction Indicator and Horn Switch Lever |
| 6 | Windscreen Wiper Switch | 19 | Gear Pattern |
| 7 | Temperature Gauge | 20 | Heater Controls |
| 8 | Left-hand Indicator Warning Light (orange) | 21 | Gear Level (see No 19 for pattern) |
| 9 | Oil Pressure Warning Light (green) | 22 | Hand Brake Lever |
| 10 | Speedometer and Milage Recorder | 23 | Clutch Pedal |
| 11 | Main Beam Warning Light (blue) | 24 | Brake Pedal |
| 12 | Fuel Gauge | 25 | Accelerator Pedal |
| 13 | Generator Warning Light (red) | 26 | Instrument Panel Light Switch |

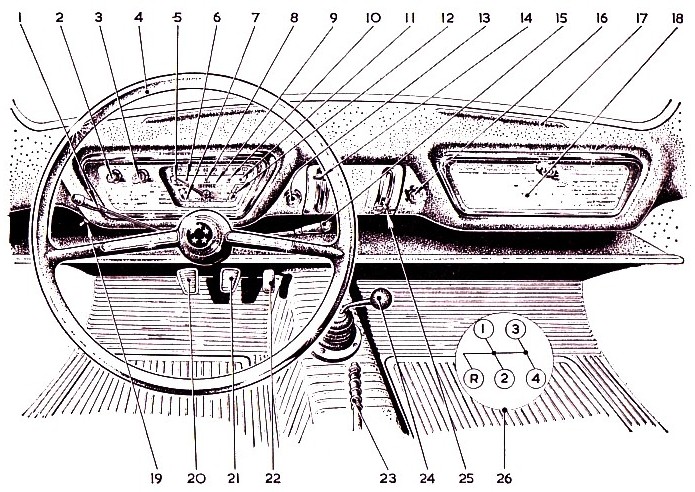

Dashboard Layout for the Ford Anglia 106E
| 1 | Glove Box | 14 | Air Conditioning / Heater Controls |
| 2 | Light Switch | 15 | Direction Indicator and Horn Switch Lever |
| 3 | Ignition Switch and Starter Control | 16 | Windscreen Wiper switch |
| 4 | Steering wheel | 17 | Demister Slots |
| 5 | Left-hand Indicator Warning Light (orange) | 18 | Glove Box |
| 6 | Oil Pressure Warning Light (green) | 19 | Instrument Panel Light Switch |
| 7 | Temperature Gauge | 20 | Clutch Pedal |
| 8 | Main Beam Warning Light (blue) | 21 | Brake Pedal |
| 9 | Speedometer and Milage Recorder | 22 | Gas Pedal |
| 10 | Generator Warning Light (red) | 23 | Parking Brake Lever |
| 11 | Right-hand Indicator Warning Light (orange) | 24 | Gear Level (see No 26 for pattern) |
| 12 | Fuel Gauge | 25 | Hood Lock / Release |
| 13 | Choke Control | 26 | Gear Pattern |
 |
